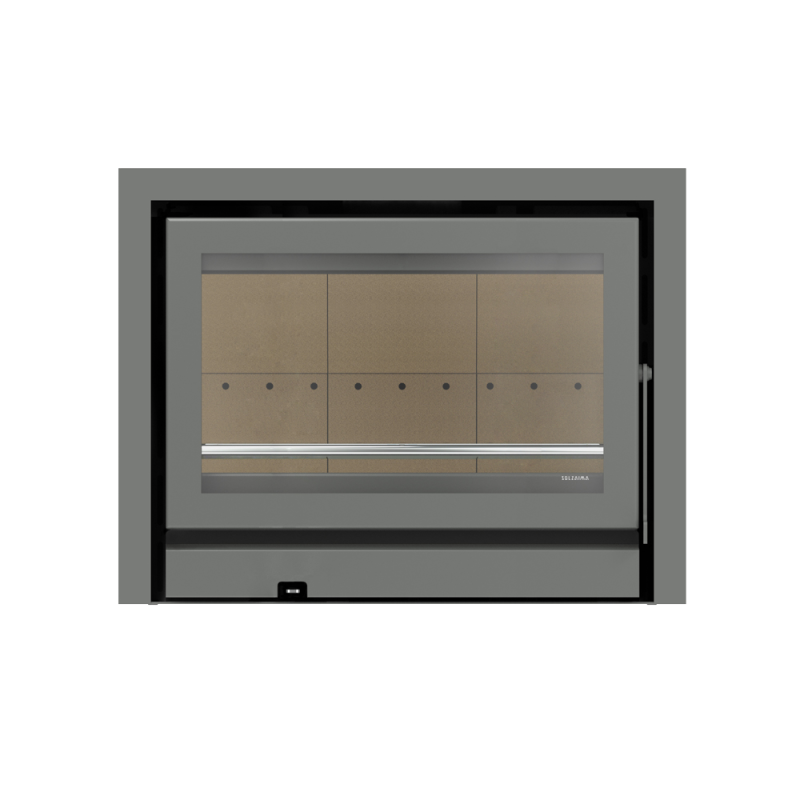

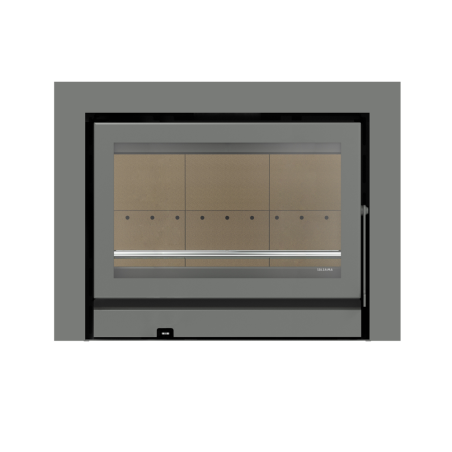

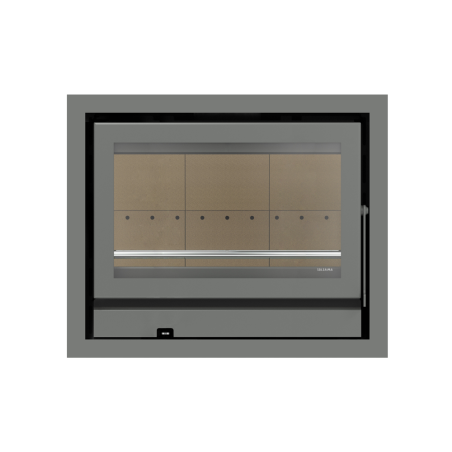

ORION 12KW - Air Heating Boiler - Air Heating SOLZAIMA

CHARACTERISTICS

Maximum Heating Volume (m³)279

Nominal Power (kW)9,5

Power of use (kW)6.7 - 12.4

Nominal Performance (%)71

Firewood Consumption/Hour (kg)1

Max Firewood Length (mm)500

Weight (kg)91

Chimney Diameter (mm)180

Necessary Depression in the chimney (pa)12

Yield 71

Fuel wood consumption per hour2.3 Kg

Maximum heated volume279m3

Base option without ring

Option 1 : Ring 3 sides 5cms anthracite (ref. AQ857009)

Option 2 :Frame 4 sides 5cms anthracite (ref. AQ857011)

Option 3 :Rim 4 sides 10cms anthracite (ref. AQ857012)

Option 4 :Rim 4 sides 5cms stainless steel (ref. AQ857013)

Option 5 :Frame 4 sides 10cms stainless steel (ref. AQ857014)
