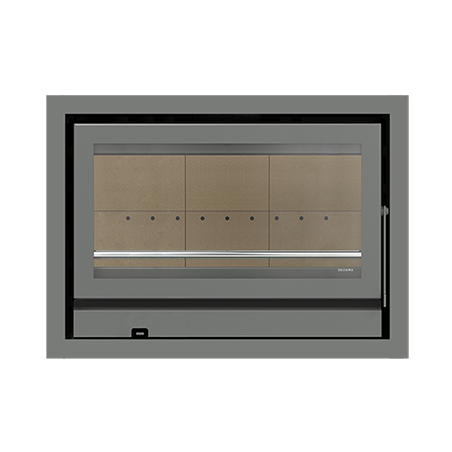

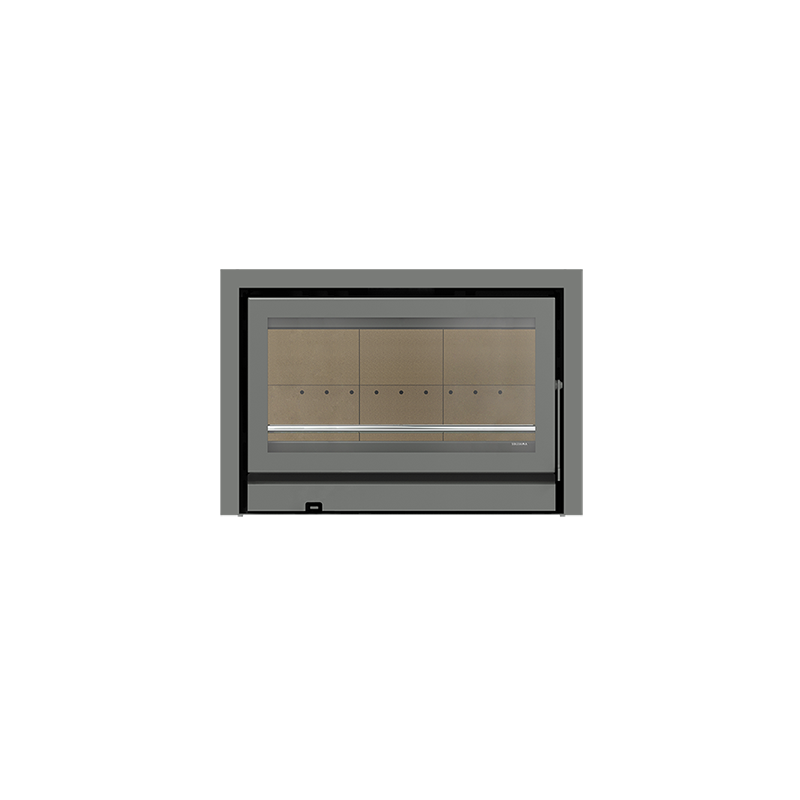

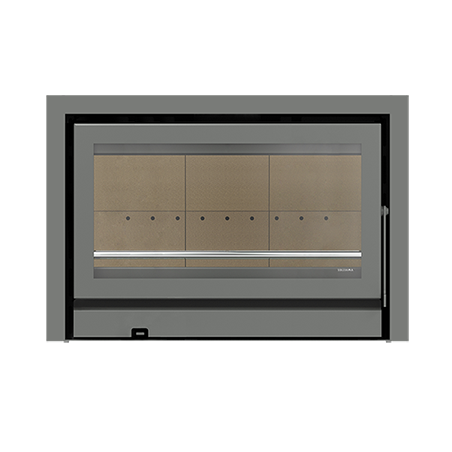

RIALTO ECO 80 14KW - Air Heating Boiler SOLZAIMA

CHARACTERISTICS

Maximum Heating Volume (m³)323

Nominal Power (kW)11

Power of use (kW)7.7 - 14.3

Nominal Performance (%)71

Fuelwood Consumption/Hour (kg)1

Max Firewood Length (mm)500

Weight (kg)100

Chimney Diameter (mm)180

Necessary Depression in the chimney (pa)12

Efficiency71

Fuel wood consumption per hour2.6 Kg

Maximum heated volume323m3

Base option without ring

Option 1 : Frame 3 sides 5cms anthracite (ref. AQ857017)

Option 2 :Frame 4 sides 5cms anthracite (ref. AQ857019)

Option 3 :Rim 4 sides 10cms anthracite (ref. AQ857020)

Option 4 :Frame 4 sides 5cms stainless steel (ref. AQ857021)

Option 5 :Frame 4 sides 10cm inox (ref. AQ857022)
